Part number: 106805

• Availability:
• Price:
• Description:

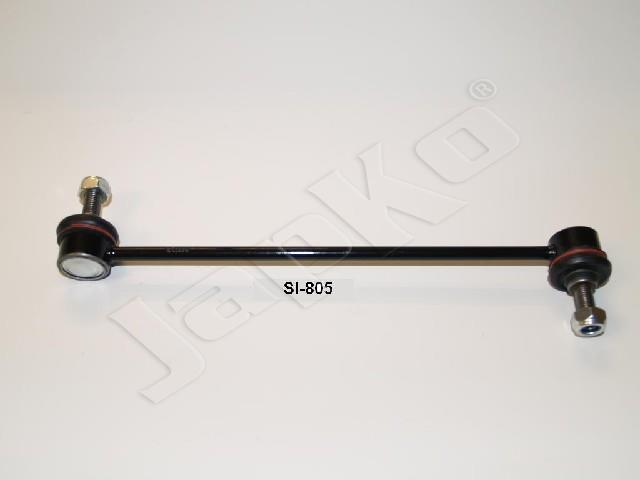

  Link/Coupling Rod, stabiliser bar
• Fitting Position
  Front Axle
• Overall Length [mm]
  298
• Overall Height [mm]
  56
• External Thread [mm]
  10 X 1,25
• Thread Size 1
  MM10X1,25R
• Functional Length [mm]
  270
• Specification
  Lung perno-perno
• Rod/Strut
  Coupling Rod
• Barcode:
  8033001690422
• WARRANTY INFO:
  2 YEARS

OEM Codes

• BCKE34170 (MAZDA)
• 71742688 (FIAT)
• 4242080J00 (SUZUKI)
• 4242077M01 (SUZUKI)
• 4242077M00 (SUZUKI)
• 4242059J00 (SUZUKI)
• 4242058M00 (SUZUKI)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
FIAT SEDICI 1.6 16V	88	1586	4	06-2006/10-2014	M16A	Benzina
FIAT SEDICI 1.6 16V	79	1586	4	06-2006/10-2014	M16A	Benzina
FIAT SEDICI 1.6 16V 4x4	88	1586	4	06-2006/10-2014	M16A	Benzina
FIAT SEDICI 1.6 16V 4x4	79	1586	4	06-2006/10-2014	M16A	Benzina
FIAT SEDICI 1.9 D Multijet	88	1910	4	06-2006/10-2011	D19AA	Diesel
FIAT SEDICI 1.9 D Multijet	88	1910	4	06-2006/10-2011	D19AA	Diesel
FIAT SEDICI 2.0 D Multijet	99	1956	4	06-2006/10-2014	D20AA	Diesel
FIAT SEDICI 2.0 D Multijet 4x4	99	1956	4	06-2006/10-2014	D20AA	Diesel
HOLDEN VT 3.6 VVT Executive	175	3565	6	09-2002/ -		Benzina
MAZDA CX-30 (DM) 1.8 SKYACTIV-D	85	1759	4	07-2019/ -
MAZDA CX-30 (DM) 1.8 SKYACTIV-D AWD	85	1759	4	07-2019/ -
MAZDA CX-30 (DM) SKYACTIV-G M Hybrid	90	1998	4	07-2019/ -
MAZDA CX-30 (DM) SKYACTIV-G M Hybrid (DM5W, DM6W)	110	1998	4	01-2020/ -
MAZDA CX-30 (DM) SKYACTIV-G M Hybrid AWD	90	1998	4	07-2019/ -
MAZDA CX-30 (DM) SKYACTIV-G M Hybrid AWD (DMEW, DMFW)	110	1998	4	01-2020/ -
MAZDA CX-30 (DM) SKYACTIV-X M Hybrid	132	1998	4	07-2019/ -
MAZDA CX-30 (DM) SKYACTIV-X M Hybrid AWD	132	1998	4	07-2019/ -
MITSUBISHI TRITON 3.5 i 4x4	135	3497	6	07-2006/12-2009		Benzina
ROEWE (SAIC) 550 1.8	98	1796	4	11-2008/ -		Benzina
SUZUKI CELERIO 1.0	50	998	3	03-2014/ -	K10B	Benzina
SUZUKI LIANA (ER) 1.3	66	1328	4	03-2002/ -	M13A	Benzina
SUZUKI LIANA (ER) 1.4 DDiS	66	1398	4	04-2004/ -	8HY	Diesel
SUZUKI LIANA (ER) 1.6	79	1586	4	01-2005/ -	M16A	Benzina
SUZUKI LIANA (ER) 1.6	76	1586	4	03-2002/ -	M16A	Benzina
SUZUKI LIANA (ER) 1.6	78	1586	4	04-2002/ -	M16A	Benzina
SUZUKI LIANA (ER) 1.6 4WD	78	1586	4	04-2002/ -	M16A	Benzina
SUZUKI LIANA (ER) 1.6 4WD	76	1586	4	03-2002/ -	M16A	Benzina
SUZUKI LIANA (ER) 1.6 4WD	79	1586	4	01-2005/12-2007	M16A	Benzina
SUZUKI LIANA Station wagon (ER) 1.3	66	1328	4	07-2001/ -	M13A	Benzina
SUZUKI LIANA Station wagon (ER) 1.4 DDiS	66	1398	4	03-2005/ -	8HY	Diesel
SUZUKI LIANA Station wagon (ER) 1.6	79	1586	4	01-2005/ -	M16A	Benzina
SUZUKI LIANA Station wagon (ER) 1.6	76	1586	4	07-2001/ -	M16A	Benzina
SUZUKI LIANA Station wagon (ER) 1.6	78	1586	4	04-2002/ -	M16A	Benzina
SUZUKI LIANA Station wagon (ER) 1.6 4WD	78	1586	4	04-2002/ -	M16A	Benzina
SUZUKI LIANA Station wagon (ER) 1.6 4WD	76	1586	4	07-2001/ -	M16A	Benzina
SUZUKI LIANA Station wagon (ER) 1.6 4WD	79	1586	4	01-2005/ -	M16A	Benzina
SUZUKI SWIFT IV (FZ, NZ) 1.2	69	1242	4	10-2010/ -	K12B	Benzina
SUZUKI SWIFT IV (FZ, NZ) 1.2	66	1242	4	10-2010/ -	K12B	Benzina
SUZUKI SWIFT IV (FZ, NZ) 1.2 4x4	66	1242	4	10-2010/ -	K12B	Benzina
SUZUKI SWIFT IV (FZ, NZ) 1.2 4x4	69	1242	4	10-2010/ -	K12B	Benzina
SUZUKI SWIFT IV (FZ, NZ) 1.3 DDiS	55	1248	4	10-2010/ -	D13A	Diesel
SUZUKI SWIFT IV (FZ, NZ) 1.6	100	1586	4	01-2012/ -	M16A	Benzina
SUZUKI SX4 (EY, GY) 1.5	73	1490	4	06-2006/07-2010	M15A	Benzina
SUZUKI SX4 (EY, GY) 1.5 VVT	82	1490	4	07-2010/ -	M15A	Benzina
SUZUKI SX4 (EY, GY) 1.5 VVT 4x4	82	1490	4	07-2010/ -	M15A	Benzina
SUZUKI SX4 (EY, GY) 1.5 VVTi	81	1490	4	07-2007/12-2015		Benzina
SUZUKI SX4 (EY, GY) 1.6 DDIS	66	1560	4	04-2007/ -	9HX	Diesel
SUZUKI SX4 (EY, GY) 1.6 VVT	88	1586	4	07-2009/ -	M16A	Benzina
SUZUKI SX4 (EY, GY) 1.6 VVT	79	1586	4	06-2006/ -	M16A	Benzina
SUZUKI SX4 (EY, GY) 1.6 VVT 4x4	88	1586	4	07-2009/ -	M16A	Benzina
SUZUKI SX4 (EY, GY) 1.6 VVT 4x4	79	1586	4	06-2006/ -	M16A	Benzina
SUZUKI SX4 (EY, GY) 1.6 VVT 4x4	82	1586	4	07-2009/ -	M16A	Benzina
SUZUKI SX4 (EY, GY) 1.9 DDiS	88	1910	4	06-2006/ -	D19AA	Diesel
SUZUKI SX4 (EY, GY) 1.9 DDiS 4x4	88	1910	4	06-2006/ -	D19AA	Diesel
SUZUKI SX4 (EY, GY) 2.0 4x4 (RW415, RW416, RW420)	107	1995	4	06-2006/ -		Benzina
SUZUKI SX4 (EY, GY) 2.0 DDiS	99	1956	4	07-2009/ -	D20AA	Diesel
SUZUKI SX4 (EY, GY) 2.0 DDiS 4x4	99	1956	4	07-2009/ -	D20AA	Diesel
SUZUKI SX4 S-Cross 1.0	82	998	3	08-2016/ -		Benzina
SUZUKI SX4 S-Cross 1.0	82	998	3	08-2016/ -		Benzina
SUZUKI SX4 S-Cross 1.4 Hybrid (Mild Hybrid) (AKK 414)	95	1373	4	08-2019/ -
SUZUKI SX4 S-Cross 1.4 Hybrid (Mild Hybrid) AllGrip (AKK 414)	95	1373	4	08-2019/ -
SUZUKI SX4 S-Cross 1.4 T	103	1373	4	08-2016/ -		Benzina
SUZUKI SX4 S-Cross 1.4 T	103	1373	4	08-2016/ -		Benzina
SUZUKI SX4 S-Cross 1.6	86	1586	4	12-2013/ -	M16A	Benzina
SUZUKI SX4 S-Cross 1.6	86	1586	4	12-2013/ -	M16A	Benzina
SUZUKI SX4 S-Cross 1.6	88	1596	4	08-2013/ -	M16A	Benzina
SUZUKI SX4 S-Cross 1.6 4x4	88	1586	4	08-2013/ -	M16A	Benzina
SUZUKI SX4 S-Cross 1.6 DDiS	88	1598	4	08-2013/ -		Diesel
SUZUKI SX4 S-Cross 1.6 DDiS 4x4	88	1598	4	08-2013/ -		Diesel
SUZUKI SX4 Tre volumi (GY) 1.6	79	1586	4	10-2007/ -	M16A	Benzina
SUZUKI SX4 Tre volumi (GY) 1.6	88	1586	4	10-2007/ -	M16A	Benzina
SUZUKI SX4 Tre volumi (GY) 1.6 AWD (RW 416)	79	1586	4	10-2007/12-2011		Benzina
SUZUKI VITARA 1.6 VVT-V	88	1586	4	05-2015/ -		Benzina
SUZUKI VITARA (LY) 1.0 (APK 310)	82	998	3	10-2018/ -		Benzina
SUZUKI VITARA (LY) 1.0 AllGrip (APK 310)	82	998	3	10-2018/ -		Benzina
SUZUKI VITARA (LY) 1.4	103	1373	4	09-2015/ -		Benzina
SUZUKI VITARA (LY) 1.4	103	1373	4	09-2015/ -		Benzina
SUZUKI VITARA (LY) 1.4 Hybrid (Mild Hybrid)	95	1373	4	07-2019/ -
SUZUKI VITARA (LY) 1.4 Hybrid (Mild Hybrid) AllGrip	95	1373	4	07-2019/ -
SUZUKI VITARA (LY) 1.6	88	1586	4	02-2015/ -		Benzina
SUZUKI VITARA (LY) 1.6	88	1586	4	02-2015/ -		Benzina
SUZUKI VITARA (LY) 1.6 AllGrip (APK 416)	86	1586	4	05-2015/ -		Benzina
SUZUKI VITARA (LY) 1.6 DDiS	88	1598	4	02-2015/ -		Diesel
SUZUKI VITARA (LY) 1.6 DDiS	88	1598	4	02-2015/ -		Diesel
