Part number: SG-0010JM

• Availability:
• Price:
• Description:

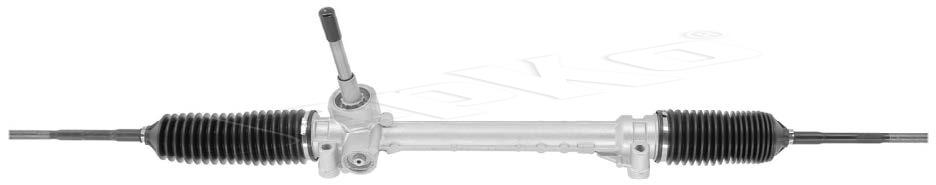

  Steering Box
• Operating Mode
  Mechanical
• Steering Gear Type
  Rack and Pinion Steering Gear
• Left-/right-hand drive vehicles
  for left-hand drive vehicles
• Left-hand/Right-hand Traffic
  for right-hand traffic
• Overall Length [mm]
  1015
• Length 1/Length 2 [mm]
  stroke= 150
• Number of steering wheel turns
  3
• Input shaft connector type
  toothed
• Number of Teeth on input shaft
  26
• Input Shaft Diameter [mm]
  14,1
• Input shaft height [mm]
  127
• Axle Joint Thread Size
  M12x1,5
• Axle Joint Thread Type
  with external thread
• Fastening hole spacing [mm]
  339
• Barcode:
  8057333302440
• WARRANTY INFO:
  2 YEARS

OEM Codes

• 51965755 (FIAT)
• 51907996 (FIAT)
• 51907994 (FIAT)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
FIAT PANDA (519, 312, 319) 0.9	57	875	2	02-2012/ -	312 A2.000	Benzina
FIAT PANDA (519, 312, 319) 0.9	63	875	2	02-2012/ -	312 A2.000	Benzina
FIAT PANDA (519, 312, 319) 0.9	59	875	2	12-2013/ -	312 A5.000	Benzina
FIAT PANDA (519, 312, 319) 0.9	44	964	2	12-2013/ -	312 A4.000	Benzina
FIAT PANDA (519, 312, 319) 0.9 (312PXH1A)	48	964	2	02-2012/ -		Benzina
FIAT PANDA (519, 312, 319) 0.9 CNG	63	875	2	07-2012/ -	312 A2.000	GNC
FIAT PANDA (519, 312, 319) 1.2	51	1242	4	02-2012/ -	169 A4.000	Benzina
FIAT PANDA (519, 312, 319) 1.2 LPG	51	1242	4	06-2012/ -	169 A4.000	GPL
FIAT PANDA (519, 312, 319) 1.3 D Multijet	55	1248	4	02-2012/ -	199 A1.000	Diesel
LANCIA YPSILON (312, 846) 0.9 CNG	63	875	2	05-2011/ -	312 A2.000	Benzina/Gas naturale (GNC)
LANCIA YPSILON (312, 846) 0.9 Twinair	59	875	2	12-2013/ -	312 A2.000	Benzina
LANCIA YPSILON (312, 846) 0.9 Twinair	63	875	2	05-2011/ -	312 A2.000	Benzina
LANCIA YPSILON (312, 846) 1.2	51	1242	4	05-2011/ -	169 A4.000	Benzina
LANCIA YPSILON (312, 846) 1.2 Bifuel	49	1242	4	05-2011/ -	169 A4.000	BiFuel
LANCIA YPSILON (312, 846) 1.3 Multijet	70	1248	4	05-2011/ -	199 B1.000	Diesel
LANCIA YPSILON (843) 1.2	51	1242	4	08-2010/12-2011	169 A4.000	Benzina
