Search By Code 60268C

Part number: 60268C

Availability:
Price:
Description:

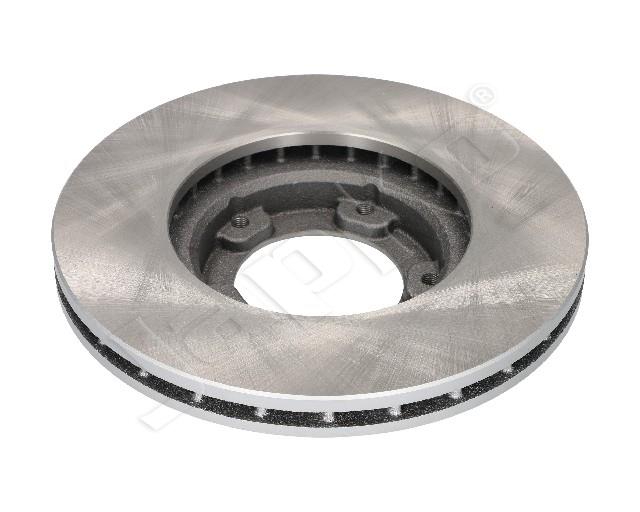

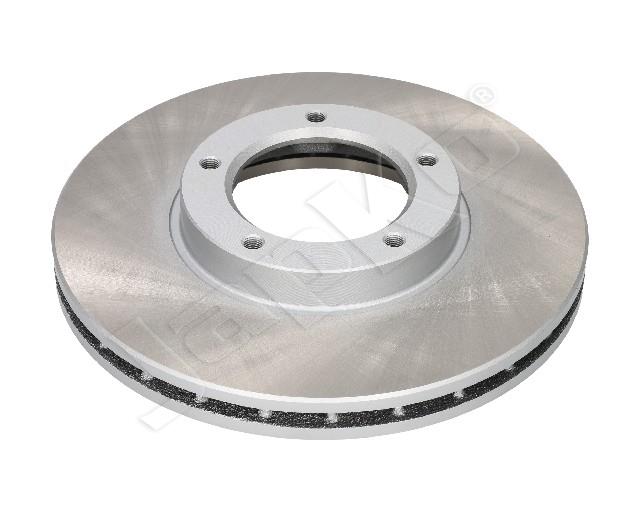

Brake Disc
Replaced:

60268
60270C
Fitting Position
Front Axle
Bolt Hole Circle Ø [mm]
84
Height [mm]
46,3
Outer Diameter [mm]
256,7
Brake Disc Thickness [mm]
25
Minimum thickness [mm]
23
Number of bores
5
Brake Disc Type
Vented
Test Mark
ECE R90 APPROVED
Surface
Painted
Tightening Torque [Nm]
147
for OE number
4351235180
Barcode:
8052553552873
WARRANTY INFO:
2 YEARS

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
TOYOTA DYNA 100 Pianale piatto/Telaio (LY1_, YY1_) 2.4 D (LY100_)	54	2446	4	05-1995/07-2001		Diesel

TOYOTA HIACE I Furgonato (RH1_, LH3_, RH3_, RH2_, LH2_, L 2.0 (RH25-32)	65	1968	4	02-1977/03-1983	18R	Benzina

TOYOTA HIACE I Furgonato (RH1_, LH3_, RH3_, RH2_, LH2_, L 2.2 D (LH20-30)	46	2173	4	01-1979/03-1983	L	Diesel

TOYOTA HIACE II Furgonato (LH5_, YH7_, LH7_, LH6_, YH6_, 1.8	58	1812	4	12-1982/07-1989	2Y	Benzina

TOYOTA HIACE II Furgonato (LH5_, YH7_, LH7_, LH6_, YH6_, 2.0	65	1998	4	12-1982/08-1989	3Y	Benzina

TOYOTA HIACE II Furgonato (LH5_, YH7_, LH7_, LH6_, YH6_, 2.2 D	49	2173	4	12-1982/11-1989	L	Diesel

TOYOTA HIACE II Furgonato (LH5_, YH7_, LH7_, LH6_, YH6_, 2.4 D	55	2446	4	12-1982/11-1989	2L	Diesel

TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 1.8 (H5G)	58	1812	4	03-1983/07-1989	2Y	Benzina

TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 2.0 (H5G)	65	1998	4	01-1985/08-1989	3Y	Benzina

TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 2.2 D (H5G)	49	2173	4	12-1982/11-1989	L	Diesel

TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 2.4 D (H5G)	55	2446	4	04-1984/08-1989	2L	Diesel

TOYOTA HIACE II Wagon (LH7_, LH5_, LH6_, YH7_, YH6_, YH5_ 2.4 D 4WD (H5F)	54	2446	4	01-1987/08-1989	2L	Diesel

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.0	74	1998	4	02-1990/08-2004	1RZ	Benzina

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4	88	2438	4	08-1989/08-1995	2RZ-E	Benzina

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 4WD	88	2438	4	08-1989/08-1995	2RZ-E	Benzina

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 D	57	2446	4	09-1989/08-1995	2L	Diesel

TOYOTA HIACE III Furgonato (YH7_, LH6_, LH7_, LH5_, YH5_, 2.4 Diesel	55	2446	4	08-1989/08-2004	2L	Diesel

TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.0 (RZH102)	74	1998	4	08-1989/04-1998	1RZ	Benzina

TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 (RZH103)	88	2438	4	08-1989/08-2003	2RZ-E	Benzina

TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 4WD	88	2438	4	08-1989/07-1995	2RZ-E	Benzina

TOYOTA HIACE III Wagon (LH1_, RZH1_) 2.4 D (LH102)	55	2446	4	08-1989/08-1995	2L	Diesel

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 1.8 (YN85_, YN90_)	61	1812	4	08-1988/07-1994	2Y	Benzina

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.0	65	1998	4	01-1984/12-1986	3Y	Benzina

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 D	58	2446	4	03-1995/ -	2L	Diesel

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 D	55	2446	4	07-1998/01-2002	2L	Diesel

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 D	61	2446	4	08-1988/ -	2L	Diesel

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 D	59	2446	4	01-1992/ -	2L	Diesel

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 D 4WD	61	2446	4	08-1988/ -	2L	Diesel

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 D 4WD	58	2446	4	01-1994/ -	2L	Diesel

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 i 4WD	103	2438	4	08-1997/ -	2RZ-FE	Benzina

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 i 4WD	84	2366	4	06-1989/ -	22RE	Benzina

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 TD (LN190)	66	2446	4	08-1998/01-2002	2L-T	Diesel

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.4 TD 4WD	66	2446	4	08-1998/01-2002	2L-T	Diesel

TOYOTA HILUX II Pick-up (RN6_, RN5_, LN6_, YN6_, YN5_, LN 2.5 D-4D	65	2494	4	11-2001/ -	2KD-FTV	Diesel

TOYOTA HILUX VI Pick-up (_N1_) 2.4 D	58	2446	4	08-1997/07-2005		Diesel

TOYOTA HILUX VI Pick-up (_N1_) 2.4 D (LN145, LN150)	61	2446	4	08-1997/08-2001		Diesel

VW TARO 1.8	61	1812	4	04-1989/09-1994	2Y	Benzina

VW TARO 2.4 D	59	2446	4	09-1991/07-1994	2L	Diesel

VW TARO 2.4 D	58	2446	4	07-1994/03-1997	2L	Diesel

VW TARO 2.4 D	61	2446	4	06-1989/03-1997	2L	Diesel
