Part number: 60096C

• Availability:
• Price:
• Description:

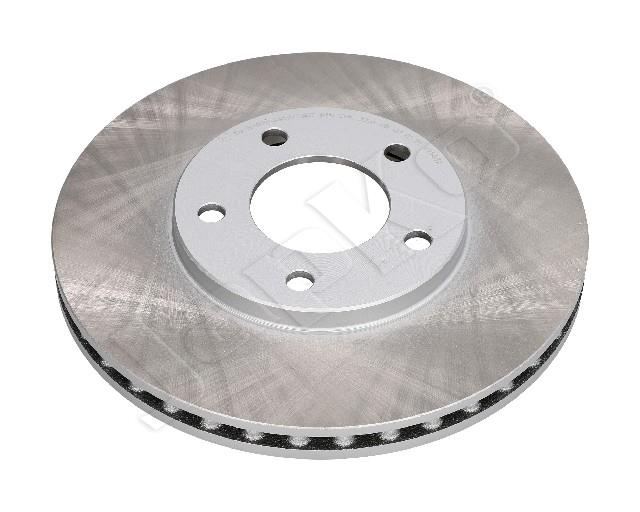

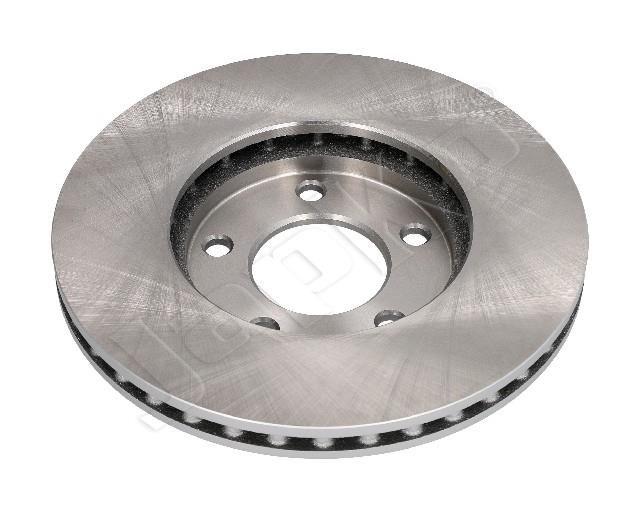

  Brake Disc
• Replaced:
  60096
• Fitting Position
  Front Axle
• Bolt Hole Circle Ø [mm]
  73
• Height [mm]
  38,4
• Outer Diameter [mm]
  281,8
• Brake Disc Thickness [mm]
  24
• Minimum thickness [mm]
  22
• Number of bores
  5
• Brake Disc Type
  Vented
• Test Mark
  ECE R90 APPROVED
• Surface
  Painted
• Tightening Torque [Nm]
  129
• for OE number
  4683432
• Barcode:
  8052553547206
• WARRANTY INFO:
  2 YEARS

Previous Next

OEM Codes

• 4721820 (CHRYSLER)
• 4683432 (CHRYSLER)
• 4683260 (CHRYSLER)
• 4523368 (CHRYSLER)
• 4509340 (CHRYSLER)
• 4509340 (DODGE)
• 4509340 (PLYMOUTH)
• 4423368 (CHRYSLER)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
CHRYSLER VOYAGER I (AS) 2.5	72	2501	4	10-1988/09-1990	EDM	Benzina
CHRYSLER VOYAGER I (AS) 3.0	104	2972	6	10-1990/09-1995	EFA	Benzina
CHRYSLER VOYAGER I (AS) 3.0	101	2972	6	10-1987/09-1990	EFA	Benzina
CHRYSLER VOYAGER I (AS) 3.0	100	2972	6	10-1987/09-1990	EFA	Benzina
CHRYSLER VOYAGER I (AS) 3.3	112	3301	6	10-1989/09-1990	EGA	Benzina
CHRYSLER VOYAGER II (ES) 2.5 i	72	2501	4	01-1991/09-1995	K00	Benzina
CHRYSLER VOYAGER II (ES) 2.5 i	74	2501	4	08-1990/09-1995	K	Benzina
CHRYSLER VOYAGER II (ES) 2.5 TD	85	2499	4	01-1992/09-1995	VM HR 425 CLIEE	Diesel
CHRYSLER VOYAGER II (ES) 2.5 TD	87	2500	4	01-1992/09-1995	09B	Diesel
CHRYSLER VOYAGER II (ES) 3.0 i	108	2972	6	01-1991/09-1995	300	Benzina
CHRYSLER VOYAGER II (ES) 3.3 i	110	3301	6	08-1990/09-1995	EGA	Benzina
CHRYSLER VOYAGER II (ES) 3.3 i	120	3301	6	08-1990/09-1995	EGA	Benzina
CHRYSLER VOYAGER II (ES) 3.3 i AWD	120	3301	6	08-1990/09-1995	R00	Benzina
CHRYSLER VOYAGER II (ES) 3.3 i AWD	110	3301	6	08-1990/09-1995	EGA	Benzina
CHRYSLER VOYAGER III (GS) 2.0 i	98	1995	4	01-1995/03-2001	C00	Benzina
CHRYSLER VOYAGER III (GS) 2.4 i	111	2429	4	01-1995/03-2001	B00	Benzina
CHRYSLER VOYAGER III (GS) 2.5 TD	85	2499	4	01-1995/03-2001	425 CLIRS/X	Diesel
CHRYSLER VOYAGER III (GS) 3.0	112	2972	6	01-1995/03-2001	EFA	Benzina
CHRYSLER VOYAGER III (GS) 3.8 i AWD	122	3778	6	01-1995/03-2001	L00	Benzina
CHRYSLER VOYAGER III VAN (GS_) 2.4 (GSHY52)	111	2429	4	01-1995/03-2001		Benzina
CHRYSLER VOYAGER III VAN (GS_) 2.5 TD (GSHY52, GSHZ52)	85	2499	4	01-1995/03-2001		Diesel
CHRYSLER VOYAGER III VAN (GS_) 3.8 AWD (GSHC52)	122	3778	6	10-1995/09-1997		Benzina
