Part number: 56223C

• Availability:
• Price:
• Description:

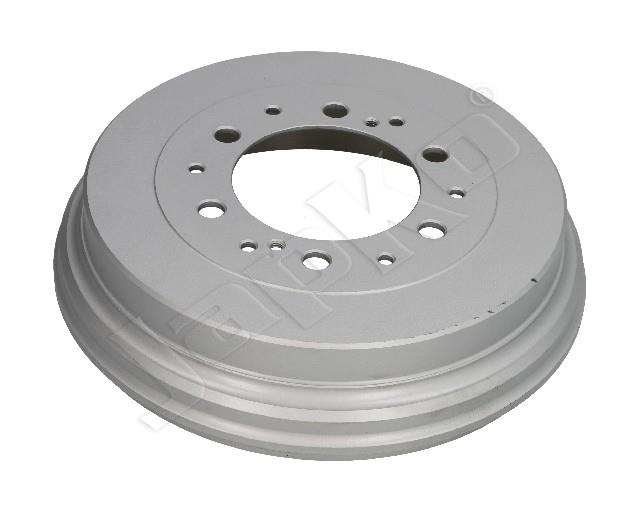

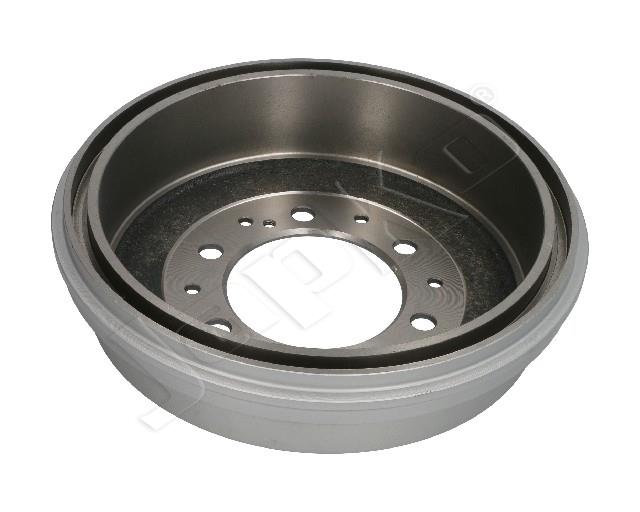

  Brake Drum
• Replaced:
  56223
• Fitting Position
  Rear Axle
• Inner brake drum diameter [mm]
  254
• Inner Brake Drum Height [mm]
  61
• Number of bores
  6
• Bolt Hole Circle Ø [mm]
  139,7
• Max.skimmed drum measure [mm]
  256
• Centering Diameter [mm]
  106
• Surface
  Painted
• Total Br. Drum Height [mm]
  71,8
• Barcode:
  8052553583198
• WARRANTY INFO:
  2 YEARS

Previous Next

OEM Codes

• 4243126190 (TOYOTA)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
TOYOTA HIACE / COMMUTER IV (TRH2_, KDH2_) 2.5 D-4D	75	2494	4	09-2006/ -	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	86	2494	4	08-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	70	2494	4	09-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D4d	86	2494	4	09-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D4d 4x4	86	2494	4	09-2006/12-2012	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (TRH2_, KDH2_) 2.5 D-4D	75	2494	4	06-2004/ -	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (TRH2_, KDH2_) 2.5 D-4D	86	2494	4	09-2006/ -	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (TRH2_, KDH2_) 2.5 D-4D	70	2494	4	09-2006/ -	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (TRH2_, KDH2_) 3.0 D	106	2982	4	11-2008/ -		Diesel
TOYOTA HIACE V Furgonato 2.5 D-4D	70	2494	4	09-2006/ -	2KD-FTV	Diesel
TOYOTA HIACE V Wagon 2.5 D-4D 4x4	86	2494	4	08-2006/ -	2KD-FTV	Diesel
